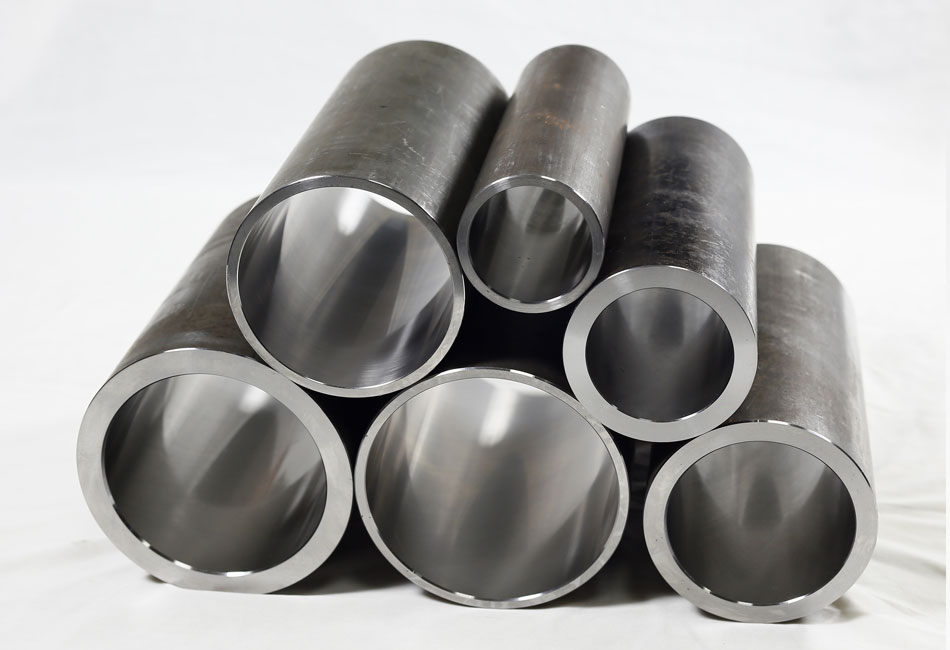

Telescope Cylinder Tube
Description
Telescope Cylinder Tube – Product Characteristics
Telescope cylinder tubes are cylinder bodies designed for telescoping mechanisms and are commonly used in hydraulic or pneumatic cylinders that require extendable motion. These tubes consist of multiple sleeve-shaped sections that extend and retract sequentially, providing long stroke capability while occupying minimal installation space. Below are the key product characteristics of telescope cylinder tubes:
Product Characteristics
1. Multi-Stage Telescopic Structure
Characteristic:
Composed of multiple concentric sleeves that extend and retract step by step to form a telescopic structure. This design allows long stroke lengths to be achieved within a compact space, making it an ideal solution for space-constrained applications.
Applications:
Widely used in lifting equipment (such as cranes), excavators, lifting platforms, construction machinery, refuse trucks, and other equipment requiring long stroke movement.
2. High Strength and Wear Resistance
Characteristic:
Typically manufactured from high-strength materials such as St52, 1020, or 4140 steel, and finished with appropriate surface treatments (such as S.R.B. or honing) to enhance wear resistance and impact strength.
Applications:
Capable of withstanding high pressure and frequent extension and retraction, ensuring long-term reliability under harsh operating conditions.
3. Excellent Surface Finish and Precision
Characteristic:
The inner surfaces are usually processed by honing or S.R.B. to achieve high surface finish (Ra 0.2–0.4 µm) and high dimensional accuracy (H8/H9 tolerance). This helps reduce friction losses and improves overall system efficiency.
Applications:
Suitable for applications requiring high precision and low friction, such as accurate piston control in hydraulic systems.
4. High Sealing Performance
Characteristic:
The design emphasizes sealing performance. High surface finish and precise tolerances effectively reduce internal leakage, maintain stable system pressure, and improve hydraulic or pneumatic control accuracy.
Applications:
Ensures stable internal pressure during operation, making it suitable for demanding hydraulic and pneumatic systems.
5. Corrosion Resistance
Characteristic:
Surface treatments such as chrome plating or zinc plating are commonly applied to enhance corrosion resistance in various environments, extending service life.
Applications:
Ideal for outdoor or corrosive environments, including marine equipment and environmental engineering applications.
6. Structural Stability
Characteristic:
Guide mechanisms and stop devices are designed between each telescopic stage to ensure smooth and stable movement during extension and retraction, preventing mutual wear or jamming between tube sections.
Applications:
Ensures stable operation under heavy loads and is suitable for a wide range of applications requiring reliable telescopic motion.
Telescope cylinder tubes are cylinder bodies designed for telescoping mechanisms and are commonly used in hydraulic or pneumatic cylinders that require extendable motion. These tubes consist of multiple sleeve-shaped sections that extend and retract sequentially, providing long stroke capability while occupying minimal installation space. Below are the key product characteristics of telescope cylinder tubes:
Product Characteristics
1. Multi-Stage Telescopic Structure
Characteristic:
Composed of multiple concentric sleeves that extend and retract step by step to form a telescopic structure. This design allows long stroke lengths to be achieved within a compact space, making it an ideal solution for space-constrained applications.
Applications:
Widely used in lifting equipment (such as cranes), excavators, lifting platforms, construction machinery, refuse trucks, and other equipment requiring long stroke movement.
2. High Strength and Wear Resistance
Characteristic:
Typically manufactured from high-strength materials such as St52, 1020, or 4140 steel, and finished with appropriate surface treatments (such as S.R.B. or honing) to enhance wear resistance and impact strength.
Applications:
Capable of withstanding high pressure and frequent extension and retraction, ensuring long-term reliability under harsh operating conditions.
3. Excellent Surface Finish and Precision
Characteristic:
The inner surfaces are usually processed by honing or S.R.B. to achieve high surface finish (Ra 0.2–0.4 µm) and high dimensional accuracy (H8/H9 tolerance). This helps reduce friction losses and improves overall system efficiency.
Applications:
Suitable for applications requiring high precision and low friction, such as accurate piston control in hydraulic systems.
4. High Sealing Performance
Characteristic:
The design emphasizes sealing performance. High surface finish and precise tolerances effectively reduce internal leakage, maintain stable system pressure, and improve hydraulic or pneumatic control accuracy.
Applications:
Ensures stable internal pressure during operation, making it suitable for demanding hydraulic and pneumatic systems.
5. Corrosion Resistance
Characteristic:
Surface treatments such as chrome plating or zinc plating are commonly applied to enhance corrosion resistance in various environments, extending service life.
Applications:
Ideal for outdoor or corrosive environments, including marine equipment and environmental engineering applications.
6. Structural Stability
Characteristic:
Guide mechanisms and stop devices are designed between each telescopic stage to ensure smooth and stable movement during extension and retraction, preventing mutual wear or jamming between tube sections.
Applications:
Ensures stable operation under heavy loads and is suitable for a wide range of applications requiring reliable telescopic motion.
Feature
- Customizable to Meet Your Needs
Application
Telescope cylinder tubes are widely used in industrial and mechanical equipment that require long stroke lengths within limited installation space, such as hydraulic cranes, construction lifting equipment, building machinery, transport systems, and special-purpose vehicles. Their structural design and performance advantages make them an ideal choice for achieving stable and reliable telescopic motion in high-load, high-demand operating environments.
